| Разъемы >> Соединители DIN 41612 >> DIN 41612 розетки прямые |
DIN 41612 9001-16/9001-26 серии типа Half C |
|
розетки прямые 3-х рядные на плату, шаг 2,54/5,08 мм
|
| .jpg)
.jpg)
|
| 9001 |
- |
1 |
6 |
48 |
1 |
C |
00 |
P |
L1 |
A |
| 1 |
|
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
1) серия
2) 1: шаг 2,54 мм
2: шаг 5,08 мм
3) 6: розетка
4) количество позиций

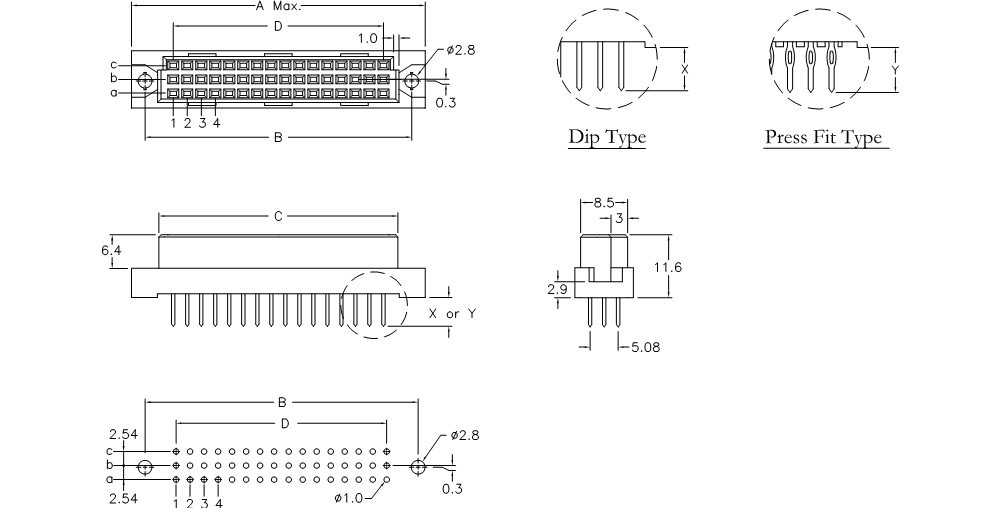

5) длина выводов в соответствии
с таблицей:
Длина
выводов,
мм |
1 |
2 |
W1 |
W2 |
| X |
4,0 |
2,5 |
13 |
17 |
| Y |
4,6 |
6,3 |
13 |
17 |
6) C: частичное золочение контактов
7) G/F
8) [пусто]: выводы под пайку
P: выводы под запрессовку
9) [пусто]: без замка в плату
L1: с замком в плату
толщиной 1,6...2,0 мм (см. PDF файл)
L2: с замком в плату
толщиной 2,8...3,2 мм (см. PDF файл)
10) A: упаковка в поддоны
|
Розетки прямые 3-х рядные на плату, шаг 2,54/5,08 мм поставляются со склада в Москве и под заказ.
Контакты вставлены в отверстия в соответствии с таблицей: |
| 2,54 |
48 |
a b c |
 |
| 32 |
a - c |
 |
| 30 |
a b c |
|
| 20 |
a - c |
|
| 16 |
a - - |
 |
| 10 |
a - - |
|
| 5,08 |
24 |
a b c |
 |
| 16 |
a - c |
 |
| 15 |
a b c |
|
| 10 |
a - c |
 |
| 8 |
a - - |
 |
| 5 |
a - - |
|
|
Совместимы с 3-х рядными розетками:
9001-16 типа Half C
9001-18 типа Half R
|
Электрические характеристики:
Максимальный ток: 2,0 А AC/DC
Сопротивление контактов: 20 мОм
Сопротивление изоляции: 1000 МОм (мин)
Диэлектрическая стойкость: 1000 V AC.
Рабочая температура: -55...+125°С
Материал изолятора: термопластичный стеклонаполненный полиэстер (UL94V-0)
Материал контактов: медный сплав |
Розетки прямые 3-х рядные (DIN 41612), шаг 2,54 мм:
| 51320 |
9001-16481C00A (DIN 41612-48ABC-FS) |
48 |
4,0 |
| 134299 |
9001-16321C00A (DIN 41612-32AC-FS) |
32 |
4,0 |
| 134300 |
9001-16301C00A (DIN 41612-30ABC-FS) |
30 |
4,0 |
| 134301 |
9001-16201C00A (DIN 41612-20AC-FS) |
20 |
4,0 |
| 134302 |
9001-16161C00A (DIN 41612-16ABC-FS) |
16 |
4,0 |
| 134303 |
9001-16101C00A (DIN 41612-10ABC-FS) |
10 |
4,0 |
| 134304 |
9001-16481C00L1A (DIN 41612-48ABC-FS) |
48 |
4,0 |
| 134305 |
9001-16321C00L1A (DIN 41612-32AC-FS) |
32 |
4,0 |
| 134306 |
9001-16301C00L1A (DIN 41612-30ABC-FS) |
30 |
4,0 |
| 134307 |
9001-16201C00L1A (DIN 41612-20AC-FS) |
20 |
4,0 |
| 134308 |
9001-16161C00L1A (DIN 41612-16ABC-FS) |
16 |
4,0 |
| 134309 |
9001-16101C00L1A (DIN 41612-10ABC-FS) |
10 |
4,0 |
| 134310 |
9001-16481C00L2A (DIN 41612-48ABC-FS) |
48 |
4,0 |
| 134311 |
9001-16321C00L2A (DIN 41612-32AC-FS) |
32 |
4,0 |
| 134312 |
9001-16301C00L2A (DIN 41612-30ABC-FS) |
30 |
4,0 |
| 134313 |
9001-16201C00L2A (DIN 41612-20AC-FS) |
20 |
4,0 |
| 134314 |
9001-16161C00L2A (DIN 41612-16ABC-FS) |
16 |
4,0 |
| 134315 |
9001-16101C00L2A (DIN 41612-10ABC-FS) |
10 |
4,0 |
| 134316 |
9001-16482C00A (DIN 41612-48ABC-FS) |
48 |
2,5 |
| 134317 |
9001-16322C00A (DIN 41612-32AC-FS) |
32 |
2,5 |
| 134318 |
9001-16302C00A (DIN 41612-30ABC-FS) |
30 |
2,5 |
| 134319 |
9001-16202C00A (DIN 41612-20AC-FS) |
20 |
2,5 |
| 134320 |
9001-16162C00A (DIN 41612-16ABC-FS) |
16 |
2,5 |
| 134321 |
9001-16102C00A (DIN 41612-10ABC-FS) |
10 |
2,5 |
| 134322 |
9001-16482C00L1A (DIN 41612-48ABC-FS) |
48 |
2,5 |
| 134323 |
9001-16322C00L1A (DIN 41612-32AC-FS) |
32 |
2,5 |
| 134324 |
9001-16302C00L1A (DIN 41612-30ABC-FS) |
30 |
2,5 |
| 134325 |
9001-16202C00L1A (DIN 41612-20AC-FS) |
20 |
2,5 |
| 134326 |
9001-16162C00L1A (DIN 41612-16ABC-FS) |
16 |
2,5 |
| 134327 |
9001-16102C00L1A (DIN 41612-10ABC-FS) |
10 |
2,5 |
| 134328 |
9001-1648W1C00A (DIN 41612-48ABC-FS) |
48 |
13 |
| 134329 |
9001-1632W1C00A (DIN 41612-32AC-FS) |
32 |
13 |
| 134330 |
9001-1630W1C00A (DIN 41612-30ABC-FS) |
30 |
13 |
| 134331 |
9001-1620W1C00A (DIN 41612-20AC-FS) |
20 |
13 |
| 134332 |
9001-1616W1C00A (DIN 41612-16ABC-FS) |
16 |
13 |
| 134333 |
9001-1610W1C00A (DIN 41612-10ABC-FS) |
10 |
13 |
| 134334 |
9001-1648W1C00L1A (DIN 41612-48ABC-FS) |
48 |
13 |
| 134335 |
9001-1632W1C00L1A (DIN 41612-32AC-FS) |
32 |
13 |
| 134336 |
9001-1630W1C00L1A (DIN 41612-30ABC-FS) |
30 |
13 |
| 134337 |
9001-1620W1C00L1A (DIN 41612-20AC-FS) |
20 |
13 |
| 134338 |
9001-1616W1C00L1A (DIN 41612-16ABC-FS) |
16 |
13 |
| 134339 |
9001-1610W1C00L1A (DIN 41612-10ABC-FS) |
10 |
13 |
| 134340 |
9001-1648W1C00L2A (DIN 41612-48ABC-FS) |
48 |
13 |
| 134341 |
9001-1632W1C00L2A (DIN 41612-32AC-FS) |
32 |
13 |
| 134342 |
9001-1630W1C00L2A (DIN 41612-30ABC-FS) |
30 |
13 |
| 134343 |
9001-1620W1C00L2A (DIN 41612-20AC-FS) |
20 |
13 |
| 134344 |
9001-1616W1C00L2A (DIN 41612-16ABC-FS) |
16 |
13 |
| 134345 |
9001-1610W1C00L2A (DIN 41612-10ABC-FS) |
10 |
13 |
| 134346 |
9001-1648W2C00A (DIN 41612-48ABC-FS) |
48 |
17 |
| 134347 |
9001-1632W2C00A (DIN 41612-32AC-FS) |
32 |
17 |
| 134348 |
9001-1630W2C00A (DIN 41612-30ABC-FS) |
30 |
17 |
| 134349 |
9001-1620W2C00A (DIN 41612-20AC-FS) |
20 |
17 |
| 134350 |
9001-1616W2C00A (DIN 41612-16A-FS) |
16 |
17 |
| 134351 |
9001-1610W2C00A (DIN 41612-10A-FS) |
10 |
17 |
| 134352 |
9001-1648W2C00L1A (DIN 41612-48ABC-FS) |
48 |
17 |
| 134353 |
9001-1632W2C00L1A (DIN 41612-32AC-FS) |
32 |
17 |
| 134354 |
9001-1630W2C00L1A (DIN 41612-30ABC-FS) |
30 |
17 |
| 134355 |
9001-1620W2C00L1A (DIN 41612-20AC-FS) |
20 |
17 |
| 134356 |
9001-1616W2C00L1A (DIN 41612-16A-FS) |
16 |
17 |
| 134357 |
9001-1610W2C00L1A (DIN 41612-10A-FS) |
10 |
17 |
| 134358 |
9001-1648W2C00L2A (DIN 41612-48ABC-FS) |
48 |
17 |
| 134359 |
9001-1632W2C00L2A (DIN 41612-32AC-FS) |
32 |
17 |
| 134360 |
9001-1630W2C00L2A (DIN 41612-30ABC-FS) |
30 |
17 |
| 134361 |
9001-1620W2C00L2A (DIN 41612-20AC-FS) |
20 |
17 |
| 134362 |
9001-1616W2C00L2A (DIN 41612-16A-FS) |
16 |
17 |
| 134363 |
9001-1610W2C00L2A (DIN 41612-10A-FS) |
10 |
17 |
| 134364 |
9001-16481C00PA (DIN 41612-48ABC-FS) |
48 |
4,0 |
| 134365 |
9001-16321C00PA (DIN 41612-32AC-FS) |
32 |
4,0 |
| 134366 |
9001-16301C00PA (DIN 41612-30ABC-FS) |
30 |
4,0 |
| 134367 |
9001-16201C00PA (DIN 41612-20AC-FS) |
20 |
4,0 |
| 134368 |
9001-16161C00PA (DIN 41612-16A-FS) |
16 |
4,0 |
| 134369 |
9001-16101C00PA (DIN 41612-10A-FS) |
10 |
4,0 |
| 134370 |
9001-16481C00PL1A (DIN 41612-48ABC-FS) |
48 |
4,0 |
| 134371 |
9001-16321C00PL1A (DIN 41612-32AC-FS) |
32 |
4,0 |
| 134372 |
9001-16301C00PL1A (DIN 41612-30ABC-FS) |
30 |
4,0 |
| 134373 |
9001-16201C00PL1A (DIN 41612-20AC-FS) |
20 |
4,0 |
| 134374 |
9001-16161C00PL1A (DIN 41612-16A-FS) |
16 |
4,0 |
| 134375 |
9001-16101C00PL1A (DIN 41612-10A-FS) |
10 |
4,0 |
| 134376 |
9001-16481C00PL2A (DIN 41612-48ABC-FS) |
48 |
4,0 |
| 134377 |
9001-16321C00PL2A (DIN 41612-32AC-FS) |
32 |
4,0 |
| 134378 |
9001-16301C00PL2A (DIN 41612-30ABC-FS) |
30 |
4,0 |
| 134379 |
9001-16201C00PL2A (DIN 41612-20AC-FS) |
20 |
4,0 |
| 134380 |
9001-16161C00PL2A (DIN 41612-16A-FS) |
16 |
4,0 |
| 134381 |
9001-16101C00PL2A (DIN 41612-10A-FS) |
10 |
4,0 |
| 134382 |
9001-16482C00PA (DIN 41612-48ABC-FS) |
48 |
2,5 |
| 134383 |
9001-16322C00PA (DIN 41612-32AC-FS) |
32 |
2,5 |
| 134384 |
9001-16302C00PA (DIN 41612-30ABC-FS) |
30 |
2,5 |
| 134385 |
9001-16202C00PA (DIN 41612-20AC-FS) |
20 |
2,5 |
| 134386 |
9001-16162C00PA (DIN 41612-16A-FS) |
16 |
2,5 |
| 134387 |
9001-16102C00PA (DIN 41612-10A-FS) |
10 |
2,5 |
| 134388 |
9001-16482C00PL1A (DIN 41612-48ABC-FS) |
48 |
2,5 |
| 134389 |
9001-16322C00PL1A (DIN 41612-32AC-FS) |
32 |
2,5 |
| 134390 |
9001-16302C00PL1A (DIN 41612-30ABC-FS) |
30 |
2,5 |
| 134391 |
9001-16202C00PL1A (DIN 41612-20AC-FS) |
20 |
2,5 |
| 134392 |
9001-16162C00PL1A (DIN 41612-16A-FS) |
16 |
2,5 |
| 134393 |
9001-16102C00PL1A (DIN 41612-10A-FS) |
10 |
2,5 |
| 134394 |
9001-1648W1C00PA (DIN 41612-48ABC-FS) |
48 |
13 |
| 134395 |
9001-1632W1C00PA (DIN 41612-32AC-FS) |
32 |
13 |
| 134396 |
9001-1630W1C00PA (DIN 41612-30ABC-FS) |
30 |
13 |
| 134397 |
9001-1620W1C00PA (DIN 41612-20AC-FS) |
20 |
13 |
| 134398 |
9001-1616W1C00PA (DIN 41612-16A-FS) |
16 |
13 |
| 134399 |
9001-1610W1C00PA (DIN 41612-10A-FS) |
10 |
13 |
| 134400 |
9001-1648W1C00PL1A (DIN 41612-48ABC-FS) |
48 |
13 |
| 134401 |
9001-1632W1C00PL1A (DIN 41612-32AC-FS) |
32 |
13 |
| 134402 |
9001-1630W1C00PL1A (DIN 41612-30ABC-FS) |
30 |
13 |
| 134403 |
9001-1620W1C00PL1A (DIN 41612-20AC-FS) |
20 |
13 |
| 134404 |
9001-1616W1C00PL1A (DIN 41612-16A-FS) |
16 |
13 |
| 134405 |
9001-1610W1C00PL1A (DIN 41612-10A-FS) |
10 |
13 |
| 134406 |
9001-1648W1C00PL2A (DIN 41612-48ABC-FS) |
48 |
13 |
| 134407 |
9001-1632W1C00PL2A (DIN 41612-32AC-FS) |
32 |
13 |
| 134408 |
9001-1630W1C00PL2A (DIN 41612-30ABC-FS) |
30 |
13 |
| 134409 |
9001-1620W1C00PL2A (DIN 41612-20AC-FS) |
20 |
13 |
| 134410 |
9001-1616W1C00PL2A (DIN 41612-16A-FS) |
16 |
13 |
| 134411 |
9001-1610W1C00PL2A (DIN 41612-10A-FS) |
10 |
13 |
| 134412 |
9001-1648W2C00PA (DIN 41612-48ABC-FS) |
48 |
17 |
| 134413 |
9001-1632W2C00PA (DIN 41612-32AC-FS) |
32 |
17 |
| 134414 |
9001-1630W2C00PA (DIN 41612-30ABC-FS) |
30 |
17 |
| 134415 |
9001-1620W2C00PA (DIN 41612-20AC-FS) |
20 |
17 |
| 134416 |
9001-1616W2C00PA (DIN 41612-16A-FS) |
16 |
17 |
| 134417 |
9001-1610W2C00PA (DIN 41612-10A-FS) |
10 |
17 |
| 134418 |
9001-1648W2C00PL1A (DIN 41612-48ABC-FS) |
48 |
17 |
| 134419 |
9001-1632W2C00PL1A (DIN 41612-32AC-FS) |
32 |
17 |
| 134420 |
9001-1630W2C00PL1A (DIN 41612-30ABC-FS) |
30 |
17 |
| 134421 |
9001-1620W2C00PL1A (DIN 41612-20AC-FS) |
20 |
17 |
| 134422 |
9001-1616W2C00PL1A (DIN 41612-16A-FS) |
16 |
17 |
| 134423 |
9001-1610W2C00PL1A (DIN 41612-10A-FS) |
10 |
17 |
| 134424 |
9001-1648W2C00PL2A (DIN 41612-48ABC-FS) |
48 |
17 |
| 134425 |
9001-1632W2C00PL2A (DIN 41612-32AC-FS) |
32 |
17 |
| 134426 |
9001-1630W2C00PL2A (DIN 41612-30ABC-FS) |
30 |
17 |
| 134427 |
9001-1620W2C00PL2A (DIN 41612-20AC-FS) |
20 |
17 |
| 134428 |
9001-1616W2C00PL2A (DIN 41612-16A-FS) |
16 |
17 |
| 134429 |
9001-1610W2C00PL2A (DIN 41612-10A-FS) |
10 |
17 |
Розетки прямые 3-х рядные (DIN 41612), шаг 5,08 мм:
| 134597 |
9001-26241C00A (DIN 41612-24ABC-FS) |
24 |
4,0 |
| 134598 |
9001-26161C00A (DIN 41612-16AC-FS) |
16 |
4,0 |
| 134599 |
9001-26151C00A (DIN 41612-15ABC-FS) |
15 |
4,0 |
| 134600 |
9001-26101C00A (DIN 41612-10AC-FS) |
10 |
4,0 |
| 134601 |
9001-2681C00A (DIN 41612-8A-FS) |
8 |
4,0 |
| 134602 |
9001-2651C00A (DIN 41612-5A-FS) |
5 |
4,0 |
| 134603 |
9001-26241C00L1A (DIN 41612-24ABC-FS) |
24 |
4,0 |
| 134604 |
9001-26161C00L1A (DIN 41612-16AC-FS) |
16 |
4,0 |
| 134605 |
9001-26151C00L1A (DIN 41612-15ABC-FS) |
15 |
4,0 |
| 134606 |
9001-26101C00L1A (DIN 41612-10AC-FS) |
10 |
4,0 |
| 134607 |
9001-2681C00L1A (DIN 41612-8A-FS) |
8 |
4,0 |
| 134608 |
9001-2651C00L1A (DIN 41612-5A-FS) |
5 |
4,0 |
| 134609 |
9001-26241C00L2A (DIN 41612-24ABC-FS) |
24 |
4,0 |
| 134610 |
9001-26161C00L2A (DIN 41612-16AC-FS) |
16 |
4,0 |
| 134611 |
9001-26151C00L2A (DIN 41612-15ABC-FS) |
15 |
4,0 |
| 134612 |
9001-26101C00L2A (DIN 41612-10AC-FS) |
10 |
4,0 |
| 134613 |
9001-2681C00L2A (DIN 41612-8A-FS) |
8 |
4,0 |
| 134614 |
9001-2651C00L2A (DIN 41612-5A-FS) |
5 |
4,0 |
| 134615 |
9001-26242C00A (DIN 41612-24ABC-FS) |
24 |
2,5 |
| 134616 |
9001-26162C00A (DIN 41612-16AC-FS) |
16 |
2,5 |
| 134617 |
9001-26152C00A (DIN 41612-15ABC-FS) |
15 |
2,5 |
| 134618 |
9001-26102C00A (DIN 41612-10AC-FS) |
10 |
2,5 |
| 134619 |
9001-2682C00A (DIN 41612-8A-FS) |
8 |
2,5 |
| 134620 |
9001-2652C00A (DIN 41612-5A-FS) |
5 |
2,5 |
| 134621 |
9001-26242C00L1A (DIN 41612-24ABC-FS) |
24 |
2,5 |
| 134622 |
9001-26162C00L1A (DIN 41612-16AC-FS) |
16 |
2,5 |
| 134623 |
9001-26152C00L1A (DIN 41612-15ABC-FS) |
15 |
2,5 |
| 134624 |
9001-26102C00L1A (DIN 41612-10AC-FS) |
10 |
2,5 |
| 134625 |
9001-2682C00L1A (DIN 41612-8A-FS) |
8 |
2,5 |
| 134626 |
9001-2652C00L1A (DIN 41612-5A-FS) |
5 |
2,5 |
| 134627 |
9001-2624W1C00A (DIN 41612-24ABC-FS) |
24 |
13 |
| 134628 |
9001-2616W1C00A (DIN 41612-16AC-FS) |
16 |
13 |
| 134629 |
9001-2615W1C00A (DIN 41612-15ABC-FS) |
15 |
13 |
| 134630 |
9001-2610W1C00A (DIN 41612-10AC-FS) |
10 |
13 |
| 134631 |
9001-268W1C00A (DIN 41612-8A-FS) |
8 |
13 |
| 134632 |
9001-265W1C00A (DIN 41612-5A-FS) |
5 |
13 |
| 134633 |
9001-2624W1C00L1A (DIN 41612-24ABC-FS) |
24 |
13 |
| 134634 |
9001-2616W1C00L1A (DIN 41612-16AC-FS) |
16 |
13 |
| 134635 |
9001-2615W1C00L1A (DIN 41612-15ABC-FS) |
15 |
13 |
| 134636 |
9001-2610W1C00L1A (DIN 41612-10AC-FS) |
10 |
13 |
| 134637 |
9001-268W1C00L1A (DIN 41612-8A-FS) |
8 |
13 |
| 134638 |
9001-265W1C00L1A (DIN 41612-5A-FS) |
5 |
13 |
| 134639 |
9001-2624W1C00L2A (DIN 41612-24ABC-FS) |
24 |
13 |
| 134640 |
9001-2616W1C00L2A (DIN 41612-16AC-FS) |
16 |
13 |
| 134641 |
9001-2615W1C00L2A (DIN 41612-15ABC-FS) |
15 |
13 |
| 134642 |
9001-2610W1C00L2A (DIN 41612-10AC-FS) |
10 |
13 |
| 134643 |
9001-268W1C00L2A (DIN 41612-8A-FS) |
8 |
13 |
| 134644 |
9001-265W1C00L2A (DIN 41612-5A-FS) |
5 |
13 |
| 134645 |
9001-2624W2C00A (DIN 41612-24ABC-FS) |
24 |
17 |
| 134646 |
9001-2616W2C00A (DIN 41612-16AC-FS) |
16 |
17 |
| 134647 |
9001-2615W2C00A (DIN 41612-15ABC-FS) |
15 |
17 |
| 134648 |
9001-2610W2C00A (DIN 41612-10AC-FS) |
10 |
17 |
| 134649 |
9001-268W2C00A (DIN 41612-8A-FS) |
8 |
17 |
| 134650 |
9001-265W2C00A (DIN 41612-5A-FS) |
5 |
17 |
| 134651 |
9001-2624W2C00L1A (DIN 41612-24ABC-FS) |
24 |
17 |
| 134652 |
9001-2616W2C00L1A (DIN 41612-16AC-FS) |
16 |
17 |
| 134653 |
9001-2615W2C00L1A (DIN 41612-15ABC-FS) |
15 |
17 |
| 134654 |
9001-2610W2C00L1A (DIN 41612-10AC-FS) |
10 |
17 |
| 134655 |
9001-268W2C00L1A (DIN 41612-8A-FS) |
8 |
17 |
| 134656 |
9001-265W2C00L1A (DIN 41612-5A-FS) |
5 |
17 |
| 134657 |
9001-2624W2C00L2A (DIN 41612-24ABC-FS) |
24 |
17 |
| 134658 |
9001-2616W2C00L2A (DIN 41612-16AC-FS) |
16 |
17 |
| 134659 |
9001-2615W2C00L2A (DIN 41612-15ABC-FS) |
15 |
17 |
| 134660 |
9001-2610W2C00L2A (DIN 41612-10AC-FS) |
10 |
17 |
| 134661 |
9001-268W2C00L2A (DIN 41612-8A-FS) |
8 |
17 |
| 134662 |
9001-265W2C00L2A (DIN 41612-5A-FS) |
5 |
17 |
| 134663 |
9001-26241C00PA (DIN 41612-24ABC-FS) |
24 |
4,0 |
| 134664 |
9001-26161C00PA (DIN 41612-16AC-FS) |
16 |
4,0 |
| 134665 |
9001-26151C00PA (DIN 41612-15ABC-FS) |
15 |
4,0 |
| 134666 |
9001-26101C00PA (DIN 41612-10AC-FS) |
10 |
4,0 |
| 134667 |
9001-2681C00PA (DIN 41612-8A-FS) |
8 |
4,0 |
| 134668 |
9001-2651C00PA (DIN 41612-5A-FS) |
5 |
4,0 |
| 134669 |
9001-26241C00PL1A (DIN 41612-24ABC-FS) |
24 |
4,0 |
| 134670 |
9001-26161C00PL1A (DIN 41612-16AC-FS) |
16 |
4,0 |
| 134671 |
9001-26151C00PL1A (DIN 41612-15ABC-FS) |
15 |
4,0 |
| 134672 |
9001-26101C00PL1A (DIN 41612-10AC-FS) |
10 |
4,0 |
| 134673 |
9001-2681C00PL1A (DIN 41612-8A-FS) |
8 |
4,0 |
| 134674 |
9001-2651C00PL1A (DIN 41612-5A-FS) |
5 |
4,0 |
| 134675 |
9001-26241C00PL2A (DIN 41612-24ABC-FS) |
24 |
4,0 |
| 134676 |
9001-26161C00PL2A (DIN 41612-16AC-FS) |
16 |
4,0 |
| 134677 |
9001-26151C00PL2A (DIN 41612-15ABC-FS) |
15 |
4,0 |
| 134678 |
9001-26101C00PL2A (DIN 41612-10AC-FS) |
10 |
4,0 |
| 134679 |
9001-2681C00PL2A (DIN 41612-8A-FS) |
8 |
4,0 |
| 134680 |
9001-2651C00PL2A (DIN 41612-5A-FS) |
5 |
4,0 |
| 134681 |
9001-26242C00PA (DIN 41612-24ABC-FS) |
24 |
2,5 |
| 134682 |
9001-26162C00PA (DIN 41612-16AC-FS) |
16 |
2,5 |
| 134683 |
9001-26152C00PA (DIN 41612-15ABC-FS) |
15 |
2,5 |
| 134684 |
9001-26102C00PA (DIN 41612-10AC-FS) |
10 |
2,5 |
| 134685 |
9001-2682C00PA (DIN 41612-8A-FS) |
8 |
2,5 |
| 134686 |
9001-2652C00PA (DIN 41612-5A-FS) |
5 |
2,5 |
| 134687 |
9001-26242C00PL1A (DIN 41612-24ABC-FS) |
24 |
2,5 |
| 134688 |
9001-26162C00PL1A (DIN 41612-16AC-FS) |
16 |
2,5 |
| 134689 |
9001-26152C00PL1A (DIN 41612-15ABC-FS) |
15 |
2,5 |
| 134690 |
9001-26102C00PL1A (DIN 41612-10AC-FS) |
10 |
2,5 |
| 134691 |
9001-2682C00PL1A (DIN 41612-8A-FS) |
8 |
2,5 |
| 134692 |
9001-2652C00PL1A (DIN 41612-5A-FS) |
5 |
2,5 |
| 134693 |
9001-2624W1C00PA (DIN 41612-24ABC-FS) |
24 |
13 |
| 134694 |
9001-2616W1C00PA (DIN 41612-16AC-FS) |
16 |
13 |
| 134695 |
9001-2615W1C00PA (DIN 41612-15ABC-FS) |
15 |
13 |
| 134696 |
9001-2610W1C00PA (DIN 41612-10AC-FS) |
10 |
13 |
| 134697 |
9001-268W1C00PA (DIN 41612-8A-FS) |
8 |
13 |
| 134698 |
9001-265W1C00PA (DIN 41612-5A-FS) |
5 |
13 |
| 134699 |
9001-2624W1C00PL1A (DIN 41612-24ABC-FS) |
24 |
13 |
| 134700 |
9001-2616W1C00PL1A (DIN 41612-16AC-FS) |
16 |
13 |
| 134701 |
9001-2615W1C00PL1A (DIN 41612-15ABC-FS) |
15 |
13 |
| 134702 |
9001-2610W1C00PL1A (DIN 41612-10AC-FS) |
10 |
13 |
| 134703 |
9001-268W1C00PL1A (DIN 41612-8A-FS) |
8 |
13 |
| 134704 |
9001-265W1C00PL1A (DIN 41612-5A-FS) |
5 |
13 |
| 134705 |
9001-2624W1C00PL2A (DIN 41612-24ABC-FS) |
24 |
13 |
| 134706 |
9001-2616W1C00PL2A (DIN 41612-16AC-FS) |
16 |
13 |
| 134707 |
9001-2615W1C00PL2A (DIN 41612-15ABC-FS) |
15 |
13 |
| 134708 |
9001-2610W1C00PL2A (DIN 41612-10AC-FS) |
10 |
13 |
| 134709 |
9001-268W1C00PL2A (DIN 41612-8A-FS) |
8 |
13 |
| 134710 |
9001-265W1C00PL2A (DIN 41612-5A-FS) |
5 |
13 |
| 134711 |
9001-2624W2C00PA (DIN 41612-24ABC-FS) |
24 |
17 |
| 134712 |
9001-2616W2C00PA (DIN 41612-16AC-FS) |
16 |
17 |
| 134713 |
9001-2615W2C00PA (DIN 41612-15ABC-FS) |
15 |
17 |
| 134714 |
9001-2610W2C00PA (DIN 41612-10AC-FS) |
10 |
17 |
| 134715 |
9001-268W2C00PA (DIN 41612-8A-FS) |
8 |
17 |
| 134716 |
9001-265W2C00PA (DIN 41612-5A-FS) |
5 |
17 |
| 134717 |
9001-2624W2C00PL1A (DIN 41612-24ABC-FS) |
24 |
17 |
| 134718 |
9001-2616W2C00PL1A (DIN 41612-16AC-FS) |
16 |
17 |
| 134719 |
9001-2615W2C00PL1A (DIN 41612-15ABC-FS) |
15 |
17 |
| 134720 |
9001-2610W2C00PL1A (DIN 41612-10AC-FS) |
10 |
17 |
| 134721 |
9001-268W2C00PL1A (DIN 41612-8A-FS) |
8 |
17 |
| 134722 |
9001-265W2C00PL1A (DIN 41612-5A-FS) |
5 |
17 |
| 134723 |
9001-2624W2C00PL2A (DIN 41612-24ABC-FS) |
24 |
17 |
| 134724 |
9001-2616W2C00PL2A (DIN 41612-16AC-FS) |
16 |
17 |
| 134725 |
9001-2615W2C00PL2A (DIN 41612-15ABC-FS) |
15 |
17 |
| 134726 |
9001-2610W2C00PL2A (DIN 41612-10AC-FS) |
10 |
17 |
| 134727 |
9001-268W2C00PL2A (DIN 41612-8A-FS) |
8 |
17 |
| 134728 |
9001-265W2C00PL2A (DIN 41612-5A-FS) |
5 |
17 |
Размеры, мм
Количество
позиций |
A |
B |
C |
D |
| 48/32/24/16/8 |
55,00 |
49,36 |
44,60 |
38,10 |
| 30/20/15/10/5 |
39,80 |
34,12 |
29,20 |
22,86 |
|
|
|
|
|
- Уважаемые покупатели! Из-за быстро меняющихся, независящих от нас обстоятельств, цены, опубликованные в Магазине, могут оказаться недействительными, не являются окончательными, предназначены только для предварительного ознакомления и ни при каких обстоятельствах не являются публичной офертой. Актуальные цены необходимо уточнять у менеджеров.
- Информацию о наличии товаров и свежих ценах уточняйте у наших менеджеров, они устанавливают окончательные цены при оформлении заказа в зависимости от количества товара и истории клиента. Также можно отправить запрос, нажав ссылку:
sales@dart.ru
- Представленная техническая информация и размеры на чертежах, опубликованные на сайте, носят справочный характер и не предназначены для использования в конструкторской документации без согласования с нами и ни при каких обстоятельствах не являются публичной офертой.
- Возможность поставки товаров, где не указан код товара, уточняйте у наших менеджеров.
- Перед закладкой компонентов в серийные изделия необходимо запрашивать образцы, в противном случае претензии не принимаются!
|
|
|
|
|
