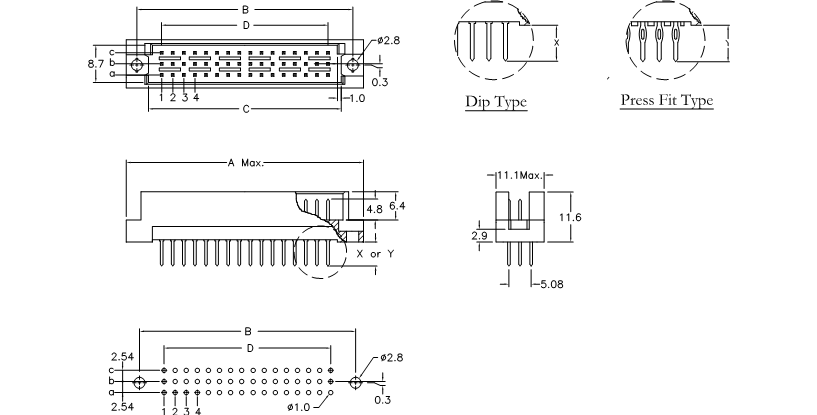

DIN 41612 9001-17/9001-27 серии типа R |
|
вилки прямые 3-х рядные на плату, шаг 2,54/5,08 мм
|
| .jpg)
.jpg)
|
| 9001 |
- |
1 |
7 |
48 |
1 |
C |
00 |
P |
L1 |
A |
| 1 |
|
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
1) серия
2) 1: шаг 2,54 мм
2: шаг 5,08 мм
3) 7: вилка
4) количество позиций
5) длина выводов в соответствии
с таблицей:
Длина
выводов,
мм |
1 |
2 |
W1 |
W2 |
| X |
4,0 |
2,5 |
13 |
17 |
| Y |
4,6 |
6,3 |
13 |
17 |
6) C: частичное золочение контактов
7) G/F
8) [пусто]: выводы под пайку
P: выводы под запрессовку
9) [пусто]: без замка в плату
L1: с замком в плату
толщиной 1,6...2,0 мм (см. PDF файл)
L2: с замком в плату
толщиной 2,8...3,2 мм (см. PDF файл)
10) A: упаковка в поддоны
|
Вилки прямые 3-х рядные на плату, шаг 2,54/5,08 мм поставляются со склада в Москве и под заказ.
Контакты вставлены в отверстия в соответствии с таблицей: |
| 2,54 |
48 |
a b c |
 |
| 32 |
a - c |
 |
| 30 |
a b c |
|
| 20 |
a - c |
|
| 16 |
a - - |
 |
| 10 |
a - - |
|
| 5,08 |
24 |
a b c |
 |
| 16 |
a - c |
 |
| 15 |
a b c |
|
| 10 |
a - c |
|
| 8 |
a - - |
 |
| 5 |
a - - |
|
|
Совместимы с 3-х рядными розетками:
9001-16 типа Half C
9001-18 типа Half R
|
Электрические характеристики:
Максимальный ток: 2,0 А AC/DC
Сопротивление контактов: 20 мОм
Сопротивление изоляции: 1000 МОм (мин)
Диэлектрическая стойкость: 1000 V AC.
Рабочая температура: -55...+125°С
Материал изолятора: термопластичный стеклонаполненный полиэстер (UL94V-0)
Материал контактов: медный сплав |
Вилки прямые 3-х рядные (DIN 41612), шаг 2,54 мм:
| 134431 |
9001-17321C00A (DIN 41612-32AC-MS) |
32 |
4,0 |
| 134432 |
9001-17301C00A (DIN 41612-30ABC-MS) |
30 |
4,0 |
| 134433 |
9001-17201C00A (DIN 41612-20AC-MS) |
20 |
4,0 |
| 134434 |
9001-17161C00A (DIN 41612-16A-MS) |
16 |
4,0 |
| 134435 |
9001-17101C00A (DIN 41612-10A-MS) |
10 |
4,0 |
| 134436 |
9001-17481C00L1A (DIN 41612-48ABC-MS) |
48 |
4,0 |
| 134437 |
9001-17321C00L1A (DIN 41612-32AC-MS) |
32 |
4,0 |
| 134438 |
9001-17301C00L1A (DIN 41612-30ABC-MS) |
30 |
4,0 |
| 134439 |
9001-17201C00L1A (DIN 41612-20AC-MS) |
20 |
4,0 |
| 134440 |
9001-17161C00L1A (DIN 41612-16A-MS) |
16 |
4,0 |
| 134441 |
9001-17101C00L1A (DIN 41612-10A-MS) |
10 |
4,0 |
| 134442 |
9001-17481C00L2A (DIN 41612-48ABC-MS) |
48 |
4,0 |
| 134443 |
9001-17321C00L2A (DIN 41612-32AC-MS) |
32 |
4,0 |
| 134444 |
9001-17301C00L2A (DIN 41612-30ABC-MS) |
30 |
4,0 |
| 134445 |
9001-17201C00L2A (DIN 41612-20AC-MS) |
20 |
4,0 |
| 134446 |
9001-17161C00L2A (DIN 41612-16A-MS) |
16 |
4,0 |
| 134447 |
9001-17101C00L2A (DIN 41612-10A-MS) |
10 |
4,0 |
| 134448 |
9001-17482C00A (DIN 41612-48ABC-MS) |
48 |
2,5 |
| 134449 |
9001-17322C00A (DIN 41612-32AC-MS) |
32 |
2,5 |
| 134450 |
9001-17302C00A (DIN 41612-30ABC-MS) |
30 |
2,5 |
| 134451 |
9001-17202C00A (DIN 41612-20AC-MS) |
20 |
2,5 |
| 134452 |
9001-17162C00A (DIN 41612-16A-MS) |
16 |
2,5 |
| 134453 |
9001-17102C00A (DIN 41612-10A-MS) |
10 |
2,5 |
| 134454 |
9001-17482C00L1A (DIN 41612-48ABC-MS) |
48 |
2,5 |
| 134455 |
9001-17322C00L1A (DIN 41612-32AC-MS) |
32 |
2,5 |
| 134456 |
9001-17302C00L1A (DIN 41612-30ABC-MS) |
30 |
2,5 |
| 134457 |
9001-17202C00L1A (DIN 41612-20AC-MS) |
20 |
2,5 |
| 134458 |
9001-17162C00L1A (DIN 41612-16A-MS) |
16 |
2,5 |
| 134459 |
9001-17102C00L1A (DIN 41612-10A-MS) |
10 |
2,5 |
| 134460 |
9001-1748W1C00A (DIN 41612-48ABC-MS) |
48 |
13 |
| 134461 |
9001-1732W1C00A (DIN 41612-32AC-MS) |
32 |
13 |
| 134462 |
9001-1730W1C00A (DIN 41612-30ABC-MS) |
30 |
13 |
| 134463 |
9001-1720W1C00A (DIN 41612-20AC-MS) |
20 |
13 |
| 134464 |
9001-1716W1C00A (DIN 41612-16A-MS) |
16 |
13 |
| 134465 |
9001-1710W1C00A (DIN 41612-10A-MS) |
10 |
13 |
| 134466 |
9001-1748W1C00L1A (DIN 41612-48ABC-MS) |
48 |
13 |
| 134467 |
9001-1732W1C00L1A (DIN 41612-32AC-MS) |
32 |
13 |
| 134468 |
9001-1730W1C00L1A (DIN 41612-30ABC-MS) |
30 |
13 |
| 134469 |
9001-1720W1C00L1A (DIN 41612-20AC-MS) |
20 |
13 |
| 134470 |
9001-1716W1C00L1A (DIN 41612-16A-MS) |
16 |
13 |
| 134471 |
9001-1710W1C00L1A (DIN 41612-10A-MS) |
10 |
13 |
| 134472 |
9001-1748W1C00L2A (DIN 41612-48ABC-MS) |
48 |
13 |
| 134473 |
9001-1732W1C00L2A (DIN 41612-32AC-MS) |
32 |
13 |
| 134474 |
9001-1730W1C00L2A (DIN 41612-30ABC-MS) |
30 |
13 |
| 134475 |
9001-1720W1C00L2A (DIN 41612-20AC-MS) |
20 |
13 |
| 134476 |
9001-1716W1C00L2A (DIN 41612-16A-MS) |
16 |
13 |
| 134477 |
9001-1710W1C00L2A (DIN 41612-10A-MS) |
10 |
13 |
| 134478 |
9001-1748W2C00A (DIN 41612-48ABC-MS) |
48 |
17 |
| 134479 |
9001-1732W2C00A (DIN 41612-32AC-MS) |
32 |
17 |
| 134480 |
9001-1730W2C00A (DIN 41612-30ABC-MS) |
30 |
17 |
| 134481 |
9001-1720W2C00A (DIN 41612-20AC-MS) |
20 |
17 |
| 134482 |
9001-1716W2C00A (DIN 41612-16A-MS) |
16 |
17 |
| 134483 |
9001-1710W2C00A (DIN 41612-10A-MS) |
10 |
17 |
| 134484 |
9001-1748W2C00L1A (DIN 41612-48ABC-MS) |
48 |
17 |
| 134485 |
9001-1732W2C00L1A (DIN 41612-32AC-MS) |
32 |
17 |
| 134486 |
9001-1730W2C00L1A (DIN 41612-30ABC-MS) |
30 |
17 |
| 134487 |
9001-1720W2C00L1A (DIN 41612-20AC-MS) |
20 |
17 |
| 134488 |
9001-1716W2C00L1A (DIN 41612-16A-MS) |
16 |
17 |
| 134489 |
9001-1710W2C00L1A (DIN 41612-10A-MS) |
10 |
17 |
| 134490 |
9001-1748W2C00L2A (DIN 41612-48ABC-MS) |
48 |
17 |
| 134491 |
9001-1732W2C00L2A (DIN 41612-32AC-MS) |
32 |
17 |
| 134492 |
9001-1730W2C00L2A (DIN 41612-30ABC-MS) |
30 |
17 |
| 134493 |
9001-1720W2C00L2A (DIN 41612-20AC-MS) |
20 |
17 |
| 134494 |
9001-1716W2C00L2A (DIN 41612-16A-MS) |
16 |
17 |
| 134495 |
9001-1710W2C00L2A (DIN 41612-10A-MS) |
10 |
17 |
| 134496 |
9001-17481C00PA (DIN 41612-48ABC-MS) |
48 |
4,0 |
| 134497 |
9001-17321C00PA (DIN 41612-32AC-MS) |
32 |
4,0 |
| 134498 |
9001-17301C00PA (DIN 41612-30ABC-MS) |
30 |
4,0 |
| 134499 |
9001-17201C00PA (DIN 41612-20AC-MS) |
20 |
4,0 |
| 134500 |
9001-17161C00PA (DIN 41612-16A-MS) |
16 |
4,0 |
| 134501 |
9001-17101C00PA (DIN 41612-10A-MS) |
10 |
4,0 |
| 134502 |
9001-17481C00PL1A (DIN 41612-48ABC-MS) |
48 |
4,0 |
| 134503 |
9001-17321C00PL1A (DIN 41612-32AC-MS) |
32 |
4,0 |
| 134504 |
9001-17301C00PL1A (DIN 41612-30ABC-MS) |
30 |
4,0 |
| 134505 |
9001-17201C00PL1A (DIN 41612-20AC-MS) |
20 |
4,0 |
| 134506 |
9001-17161C00PL1A (DIN 41612-16A-MS) |
16 |
4,0 |
| 134507 |
9001-17101C00PL1A (DIN 41612-10A-MS) |
10 |
4,0 |
| 134508 |
9001-17481C00PL2A (DIN 41612-48ABC-MS) |
48 |
4,0 |
| 134509 |
9001-17321C00PL2A (DIN 41612-32AC-MS) |
32 |
4,0 |
| 134510 |
9001-17301C00PL2A (DIN 41612-30ABC-MS) |
30 |
4,0 |
| 134511 |
9001-17201C00PL2A (DIN 41612-20AC-MS) |
20 |
4,0 |
| 134512 |
9001-17161C00PL2A (DIN 41612-16A-MS) |
16 |
4,0 |
| 134513 |
9001-17101C00PL2A (DIN 41612-10A-MS) |
10 |
4,0 |
| 134514 |
9001-17482C00PA (DIN 41612-48ABC-MS) |
48 |
2,5 |
| 134515 |
9001-17322C00PA (DIN 41612-32AC-MS) |
32 |
2,5 |
| 134516 |
9001-17302C00PA (DIN 41612-30ABC-MS) |
30 |
2,5 |
| 134517 |
9001-17202C00PA (DIN 41612-20AC-MS) |
20 |
2,5 |
| 134518 |
9001-17162C00PA (DIN 41612-16A-MS) |
16 |
2,5 |
| 134519 |
9001-17102C00PA (DIN 41612-10A-MS) |
10 |
2,5 |
| 134520 |
9001-17482C00PL1A (DIN 41612-48ABC-MS) |
48 |
2,5 |
| 134521 |
9001-17322C00PL1A (DIN 41612-32AC-MS) |
32 |
2,5 |
| 134522 |
9001-17302C00PL1A (DIN 41612-30ABC-MS) |
30 |
2,5 |
| 134523 |
9001-17202C00PL1A (DIN 41612-20AC-MS) |
20 |
2,5 |
| 134524 |
9001-17162C00PL1A (DIN 41612-16A-MS) |
16 |
2,5 |
| 134525 |
9001-17102C00PL1A (DIN 41612-10A-MS) |
10 |
2,5 |
| 134526 |
9001-1748W1C00PA (DIN 41612-48ABC-MS) |
48 |
13 |
| 134527 |
9001-1732W1C00PA (DIN 41612-32AC-MS) |
32 |
13 |
| 134528 |
9001-1730W1C00PA (DIN 41612-30ABC-MS) |
30 |
13 |
| 134529 |
9001-1720W1C00PA (DIN 41612-20AC-MS) |
20 |
13 |
| 134530 |
9001-1716W1C00PA (DIN 41612-16A-MS) |
16 |
13 |
| 134531 |
9001-1710W1C00PA (DIN 41612-10A-MS) |
10 |
13 |
| 134532 |
9001-1748W1C00PL1A (DIN 41612-48ABC-MS) |
48 |
13 |
| 134533 |
9001-1732W1C00PL1A (DIN 41612-32AC-MS) |
32 |
13 |
| 134534 |
9001-1730W1C00PL1A (DIN 41612-30ABC-MS) |
30 |
13 |
| 134535 |
9001-1720W1C00PL1A (DIN 41612-20AC-MS) |
20 |
13 |
| 134536 |
9001-1716W1C00PL1A (DIN 41612-16A-MS) |
16 |
13 |
| 134537 |
9001-1710W1C00PL1A (DIN 41612-10A-MS) |
10 |
13 |
| 134538 |
9001-1748W1C00PL2A (DIN 41612-48ABC-MS) |
48 |
13 |
| 134539 |
9001-1732W1C00PL2A (DIN 41612-32AC-MS) |
32 |
13 |
| 134540 |
9001-1730W1C00PL2A (DIN 41612-30ABC-MS) |
30 |
13 |
| 134541 |
9001-1720W1C00PL2A (DIN 41612-20AC-MS) |
20 |
13 |
| 134542 |
9001-1716W1C00PL2A (DIN 41612-16A-MS) |
16 |
13 |
| 134543 |
9001-1710W1C00PL2A (DIN 41612-10A-MS) |
10 |
13 |
| 134544 |
9001-1748W2C00PA (DIN 41612-48ABC-MS) |
48 |
17 |
| 134545 |
9001-1732W2C00PA (DIN 41612-32AC-MS) |
32 |
17 |
| 134546 |
9001-1730W2C00PA (DIN 41612-30ABC-MS) |
30 |
17 |
| 134547 |
9001-1720W2C00PA (DIN 41612-20AC-MS) |
20 |
17 |
| 134548 |
9001-1716W2C00PA (DIN 41612-16A-MS) |
16 |
17 |
| 134549 |
9001-1710W2C00PA (DIN 41612-10A-MS) |
10 |
17 |
| 134550 |
9001-1748W2C00PL1A (DIN 41612-48ABC-MS) |
48 |
17 |
| 134551 |
9001-1732W2C00PL1A (DIN 41612-32AC-MS) |
32 |
17 |
| 134552 |
9001-1730W2C00PL1A (DIN 41612-30ABC-MS) |
30 |
17 |
| 134553 |
9001-1720W2C00PL1A (DIN 41612-20AC-MS) |
20 |
17 |
| 134554 |
9001-1716W2C00PL1A (DIN 41612-16A-MS) |
16 |
17 |
| 134555 |
9001-1710W2C00PL1A (DIN 41612-10A-MS) |
10 |
17 |
| 134556 |
9001-1748W2C00PL2A (DIN 41612-48ABC-MS) |
48 |
17 |
| 134557 |
9001-1732W2C00PL2A (DIN 41612-32AC-MS) |
32 |
17 |
| 134558 |
9001-1730W2C00PL2A (DIN 41612-30ABC-MS) |
30 |
17 |
| 134559 |
9001-1720W2C00PL2A (DIN 41612-20AC-MS) |
20 |
17 |
| 134560 |
9001-1716W2C00PL2A (DIN 41612-16A-MS) |
16 |
17 |
| 134561 |
9001-1710W2C00PL2A (DIN 41612-10A-MS) |
10 |
17 |
Вилки прямые 3-х рядные (DIN 41612), шаг 5,08 мм:
| 134729 |
9001-27241C00A (DIN 41612-24ABC-MS) |
24 |
4,0 |
| 134730 |
9001-27161C00A (DIN 41612-16AC-MS) |
16 |
4,0 |
| 134731 |
9001-27151C00A (DIN 41612-15ABC-MS) |
15 |
4,0 |
| 134732 |
9001-27101C00A (DIN 41612-10AC-MS) |
10 |
4,0 |
| 134733 |
9001-2781C00A (DIN 41612-8A-MS) |
8 |
4,0 |
| 134734 |
9001-2751C00A (DIN 41612-5A-MS) |
5 |
4,0 |
| 134735 |
9001-27241C00L1A (DIN 41612-24ABC-MS) |
24 |
4,0 |
| 134736 |
9001-27161C00L1A (DIN 41612-16AC-MS) |
16 |
4,0 |
| 134737 |
9001-27151C00L1A (DIN 41612-15ABC-MS) |
15 |
4,0 |
| 134738 |
9001-27101C00L1A (DIN 41612-10AC-MS) |
10 |
4,0 |
| 134739 |
9001-2781C00L1A (DIN 41612-8A-MS) |
8 |
4,0 |
| 134740 |
9001-2751C00L1A (DIN 41612-5A-MS) |
5 |
4,0 |
| 134741 |
9001-27241C00L2A (DIN 41612-24ABC-MS) |
24 |
4,0 |
| 134742 |
9001-27161C00L2A (DIN 41612-16AC-MS) |
16 |
4,0 |
| 134743 |
9001-27151C00L2A (DIN 41612-15ABC-MS) |
15 |
4,0 |
| 134744 |
9001-27101C00L2A (DIN 41612-10AC-MS) |
10 |
4,0 |
| 134745 |
9001-2781C00L2A (DIN 41612-8A-MS) |
8 |
4,0 |
| 134746 |
9001-2751C00L2A (DIN 41612-5A-MS) |
5 |
4,0 |
| 134747 |
9001-27242C00A (DIN 41612-24ABC-MS) |
24 |
2,5 |
| 134748 |
9001-27162C00A (DIN 41612-16AC-MS) |
16 |
2,5 |
| 134749 |
9001-27152C00A (DIN 41612-15ABC-MS) |
15 |
2,5 |
| 134750 |
9001-27102C00A (DIN 41612-10AC-MS) |
10 |
2,5 |
| 134751 |
9001-2782C00A (DIN 41612-8A-MS) |
8 |
2,5 |
| 134752 |
9001-2752C00A (DIN 41612-5A-MS) |
5 |
2,5 |
| 134753 |
9001-27242C00L1A (DIN 41612-24ABC-MS) |
24 |
2,5 |
| 134754 |
9001-27162C00L1A (DIN 41612-16AC-MS) |
16 |
2,5 |
| 134755 |
9001-27152C00L1A (DIN 41612-15ABC-MS) |
15 |
2,5 |
| 134756 |
9001-27102C00L1A (DIN 41612-10AC-MS) |
10 |
2,5 |
| 134757 |
9001-2782C00L1A (DIN 41612-8A-MS) |
8 |
2,5 |
| 134758 |
9001-2752C00L1A (DIN 41612-5A-MS) |
5 |
2,5 |
| 134759 |
9001-2724W1C00A (DIN 41612-24ABC-MS) |
24 |
13 |
| 134760 |
9001-2716W1C00A (DIN 41612-16AC-MS) |
16 |
13 |
| 134761 |
9001-2715W1C00A (DIN 41612-15ABC-MS) |
15 |
13 |
| 134762 |
9001-2710W1C00A (DIN 41612-10AC-MS) |
10 |
13 |
| 134763 |
9001-278W1C00A (DIN 41612-8A-MS) |
8 |
13 |
| 134764 |
9001-275W1C00A (DIN 41612-5A-MS) |
5 |
13 |
| 134765 |
9001-2724W1C00L1A (DIN 41612-24ABC-MS) |
24 |
13 |
| 134766 |
9001-2716W1C00L1A (DIN 41612-16AC-MS) |
16 |
13 |
| 134767 |
9001-2715W1C00L1A (DIN 41612-15ABC-MS) |
15 |
13 |
| 134768 |
9001-2710W1C00L1A (DIN 41612-10AC-MS) |
10 |
13 |
| 134769 |
9001-278W1C00L1A (DIN 41612-8A-MS) |
8 |
13 |
| 134770 |
9001-275W1C00L1A (DIN 41612-5A-MS) |
5 |
13 |
| 134771 |
9001-2724W1C00L2A (DIN 41612-24ABC-MS) |
24 |
13 |
| 134772 |
9001-2716W1C00L2A (DIN 41612-16AC-MS) |
16 |
13 |
| 134773 |
9001-2715W1C00L2A (DIN 41612-15ABC-MS) |
15 |
13 |
| 134774 |
9001-2710W1C00L2A (DIN 41612-10AC-MS) |
10 |
13 |
| 134775 |
9001-278W1C00L2A (DIN 41612-8A-MS) |
8 |
13 |
| 134776 |
9001-275W1C00L2A (DIN 41612-5A-MS) |
5 |
13 |
| 134777 |
9001-2724W2C00A (DIN 41612-24ABC-MS) |
24 |
17 |
| 134778 |
9001-2716W2C00A (DIN 41612-16AC-MS) |
16 |
17 |
| 134779 |
9001-2715W2C00A (DIN 41612-15ABC-MS) |
15 |
17 |
| 134780 |
9001-2710W2C00A (DIN 41612-10AC-MS) |
10 |
17 |
| 134781 |
9001-278W2C00A (DIN 41612-8A-MS) |
8 |
17 |
| 134782 |
9001-275W2C00A (DIN 41612-5A-MS) |
5 |
17 |
| 134783 |
9001-2724W2C00L1A (DIN 41612-24ABC-MS) |
24 |
17 |
| 134784 |
9001-2716W2C00L1A (DIN 41612-16AC-MS) |
16 |
17 |
| 134785 |
9001-2715W2C00L1A (DIN 41612-15ABC-MS) |
15 |
17 |
| 134786 |
9001-2710W2C00L1A (DIN 41612-10AC-MS) |
10 |
17 |
| 134787 |
9001-278W2C00L1A (DIN 41612-8A-MS) |
8 |
17 |
| 134788 |
9001-275W2C00L1A (DIN 41612-5A-MS) |
5 |
17 |
| 134789 |
9001-2724W2C00L2A (DIN 41612-24ABC-MS) |
24 |
17 |
| 134790 |
9001-2716W2C00L2A (DIN 41612-16AC-MS) |
16 |
17 |
| 134791 |
9001-2715W2C00L2A (DIN 41612-15ABC-MS) |
15 |
17 |
| 134792 |
9001-2710W2C00L2A (DIN 41612-10AC-MS) |
10 |
17 |
| 134793 |
9001-278W2C00L2A (DIN 41612-8A-MS) |
8 |
17 |
| 134794 |
9001-275W2C00L2A (DIN 41612-5A-MS) |
5 |
17 |
| 134795 |
9001-27241C00PA (DIN 41612-24ABC-MS) |
24 |
4,0 |
| 134796 |
9001-27161C00PA (DIN 41612-16AC-MS) |
16 |
4,0 |
| 134797 |
9001-27151C00PA (DIN 41612-15ABC-MS) |
15 |
4,0 |
| 134798 |
9001-27101C00PA (DIN 41612-10AC-MS) |
10 |
4,0 |
| 134799 |
9001-2781C00PA (DIN 41612-8A-MS) |
8 |
4,0 |
| 134800 |
9001-2751C00PA (DIN 41612-5A-MS) |
5 |
4,0 |
| 134801 |
9001-27241C00PL1A (DIN 41612-24ABC-MS) |
24 |
4,0 |
| 134802 |
9001-27161C00PL1A (DIN 41612-16AC-MS) |
16 |
4,0 |
| 134803 |
9001-27151C00PL1A (DIN 41612-15ABC-MS) |
15 |
4,0 |
| 134804 |
9001-27101C00PL1A (DIN 41612-10AC-MS) |
10 |
4,0 |
| 134805 |
9001-2781C00PL1A (DIN 41612-8A-MS) |
8 |
4,0 |
| 134806 |
9001-2751C00PL1A (DIN 41612-5A-MS) |
5 |
4,0 |
| 134807 |
9001-27241C00PL2A (DIN 41612-24ABC-MS) |
24 |
4,0 |
| 134808 |
9001-27161C00PL2A (DIN 41612-16AC-MS) |
16 |
4,0 |
| 134809 |
9001-27151C00PL2A (DIN 41612-15ABC-MS) |
15 |
4,0 |
| 134810 |
9001-27101C00PL2A (DIN 41612-10AC-MS) |
10 |
4,0 |
| 134811 |
9001-2781C00PL2A (DIN 41612-8A-MS) |
8 |
4,0 |
| 134812 |
9001-2751C00PL2A (DIN 41612-5A-MS) |
5 |
4,0 |
| 134813 |
9001-27242C00PA (DIN 41612-24ABC-MS) |
24 |
2,5 |
| 134814 |
9001-27162C00PA (DIN 41612-16AC-MS) |
16 |
2,5 |
| 134815 |
9001-27152C00PA (DIN 41612-15ABC-MS) |
15 |
2,5 |
| 134816 |
9001-27102C00PA (DIN 41612-10AC-MS) |
10 |
2,5 |
| 134817 |
9001-2782C00PA (DIN 41612-8A-MS) |
8 |
2,5 |
| 134818 |
9001-2752C00PA (DIN 41612-5A-MS) |
5 |
2,5 |
| 134819 |
9001-27242C00PL1A (DIN 41612-24ABC-MS) |
24 |
2,5 |
| 134820 |
9001-27162C00PL1A (DIN 41612-16AC-MS) |
16 |
2,5 |
| 134821 |
9001-27152C00PL1A (DIN 41612-15ABC-MS) |
15 |
2,5 |
| 134822 |
9001-27102C00PL1A (DIN 41612-10AC-MS) |
10 |
2,5 |
| 134823 |
9001-2782C00PL1A (DIN 41612-8A-MS) |
8 |
2,5 |
| 134824 |
9001-2752C00PL1A (DIN 41612-5A-MS) |
5 |
2,5 |
| 134825 |
9001-2724W1C00PA (DIN 41612-24ABC-MS) |
24 |
13 |
| 134826 |
9001-2716W1C00PA (DIN 41612-16AC-MS) |
16 |
13 |
| 134827 |
9001-2715W1C00PA (DIN 41612-15ABC-MS) |
15 |
13 |
| 134828 |
9001-2710W1C00PA (DIN 41612-10AC-MS) |
10 |
13 |
| 134829 |
9001-278W1C00PA (DIN 41612-8A-MS) |
8 |
13 |
| 134830 |
9001-275W1C00PA (DIN 41612-5A-MS) |
5 |
13 |
| 134831 |
9001-2724W1C00PL1A (DIN 41612-24ABC-MS) |
24 |
13 |
| 134832 |
9001-2716W1C00PL1A (DIN 41612-16AC-MS) |
16 |
13 |
| 134833 |
9001-2715W1C00PL1A (DIN 41612-15ABC-MS) |
15 |
13 |
| 134834 |
9001-2710W1C00PL1A (DIN 41612-10AC-MS) |
10 |
13 |
| 134835 |
9001-278W1C00PL1A (DIN 41612-8A-MS) |
8 |
13 |
| 134836 |
9001-275W1C00PL1A (DIN 41612-5A-MS) |
5 |
13 |
| 134837 |
9001-2724W1C00PL2A (DIN 41612-24ABC-MS) |
24 |
13 |
| 134838 |
9001-2716W1C00PL2A (DIN 41612-16AC-MS) |
16 |
13 |
| 134839 |
9001-2715W1C00PL2A (DIN 41612-15ABC-MS) |
15 |
13 |
| 134840 |
9001-2710W1C00PL2A (DIN 41612-10AC-MS) |
10 |
13 |
| 134841 |
9001-278W1C00PL2A (DIN 41612-8A-MS) |
8 |
13 |
| 134842 |
9001-275W1C00PL2A (DIN 41612-5A-MS) |
5 |
13 |
| 134843 |
9001-2724W2C00PA (DIN 41612-24ABC-MS) |
24 |
17 |
| 134844 |
9001-2716W2C00PA (DIN 41612-16AC-MS) |
16 |
17 |
| 134845 |
9001-2715W2C00PA (DIN 41612-15ABC-MS) |
15 |
17 |
| 134846 |
9001-2710W2C00PA (DIN 41612-10AC-MS) |
10 |
17 |
| 134847 |
9001-278W2C00PA (DIN 41612-8A-MS) |
8 |
17 |
| 134848 |
9001-275W2C00PA (DIN 41612-5A-MS) |
5 |
17 |
| 134849 |
9001-2724W2C00PL1A (DIN 41612-24ABC-MS) |
24 |
17 |
| 134850 |
9001-2716W2C00PL1A (DIN 41612-16AC-MS) |
16 |
17 |
| 134851 |
9001-2715W2C00PL1A (DIN 41612-15ABC-MS) |
15 |
17 |
| 134852 |
9001-2710W2C00PL1A (DIN 41612-10AC-MS) |
10 |
17 |
| 134853 |
9001-278W2C00PL1A (DIN 41612-8A-MS) |
8 |
17 |
| 134854 |
9001-275W2C00PL1A (DIN 41612-5A-MS) |
5 |
17 |
| 134855 |
9001-2724W2C00PL2A (DIN 41612-24ABC-MS) |
24 |
17 |
| 134856 |
9001-2716W2C00PL2A (DIN 41612-16AC-MS) |
16 |
17 |
| 134857 |
9001-2715W2C00PL2A (DIN 41612-15ABC-MS) |
15 |
17 |
| 134858 |
9001-2710W2C00PL2A (DIN 41612-10AC-MS) |
10 |
17 |
| 134859 |
9001-278W2C00PL2A (DIN 41612-8A-MS) |
8 |
17 |
| 134860 |
9001-275W2C00PL2A (DIN 41612-5A-MS) |
5 |
17 |
Размеры, мм
Количество
позиций |
A |
B |
C |
D |
| 48/32/24/16/8 |
55,00 |
49,36 |
44,60 |
38,10 |
| 30/20/15/10/5 |
39,80 |
34,12 |
29,36 |
22,86 |
|
|
|
|
|
- Уважаемые покупатели! Из-за быстро меняющихся, независящих от нас обстоятельств, цены, опубликованные в Магазине, могут оказаться недействительными, не являются окончательными, предназначены только для предварительного ознакомления и ни при каких обстоятельствах не являются публичной офертой. Актуальные цены необходимо уточнять у менеджеров.
- Информацию о наличии товаров и свежих ценах уточняйте у наших менеджеров, они устанавливают окончательные цены при оформлении заказа в зависимости от количества товара и истории клиента. Также можно отправить запрос, нажав ссылку:
sales@dart.ru
- Представленная техническая информация и размеры на чертежах, опубликованные на сайте, носят справочный характер и не предназначены для использования в конструкторской документации без согласования с нами и ни при каких обстоятельствах не являются публичной офертой.
- Возможность поставки товаров, где не указан код товара, уточняйте у наших менеджеров.
- Перед закладкой компонентов в серийные изделия необходимо запрашивать образцы, в противном случае претензии не принимаются!
|
|
|
|
|
